Bendpak GrandPrix GP-9LC 9000 Lb. Capacity 2 Post Lift

Description

Bendpak GrandPrix GP-9LC 9,000 Lb. Capacity 2 Post Lift

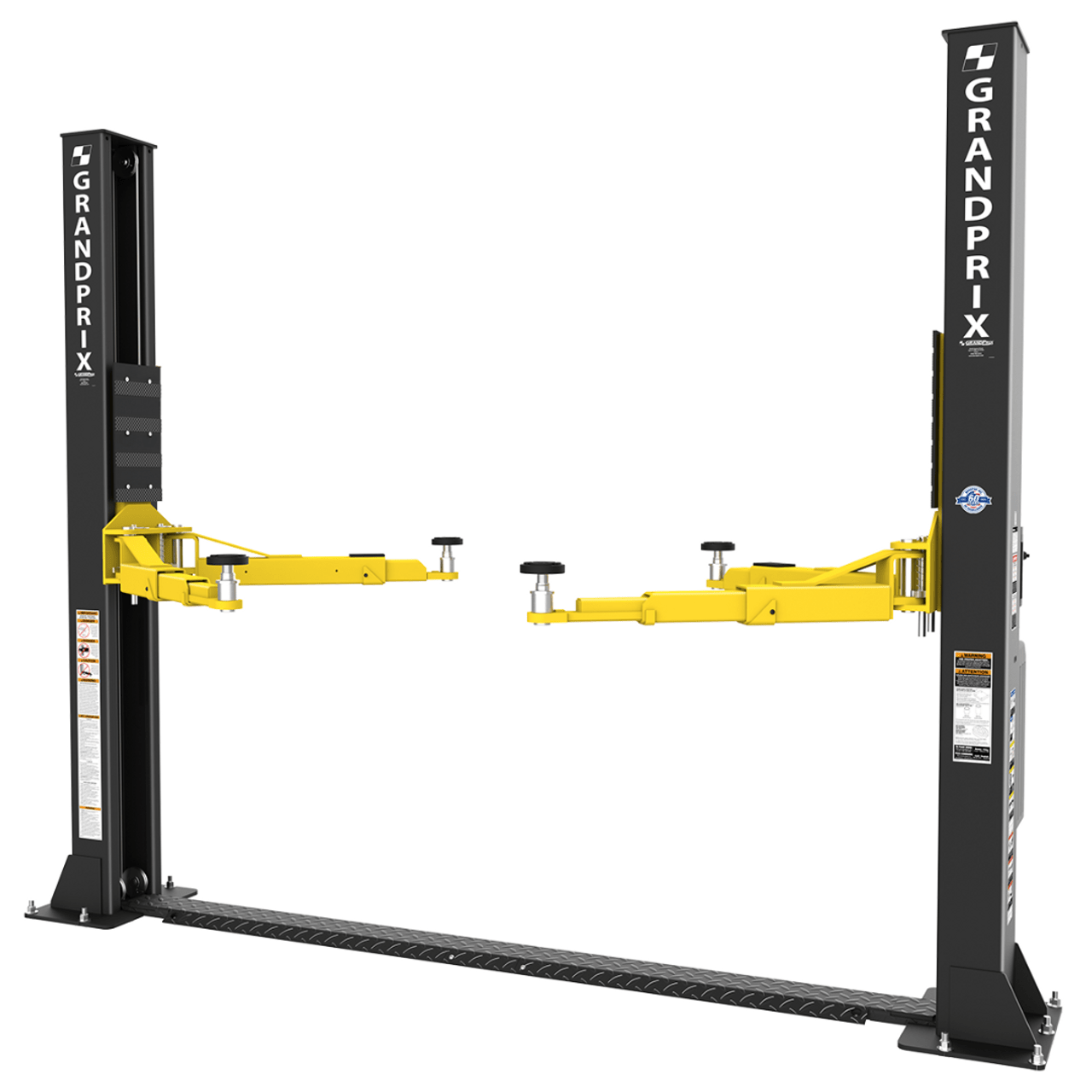

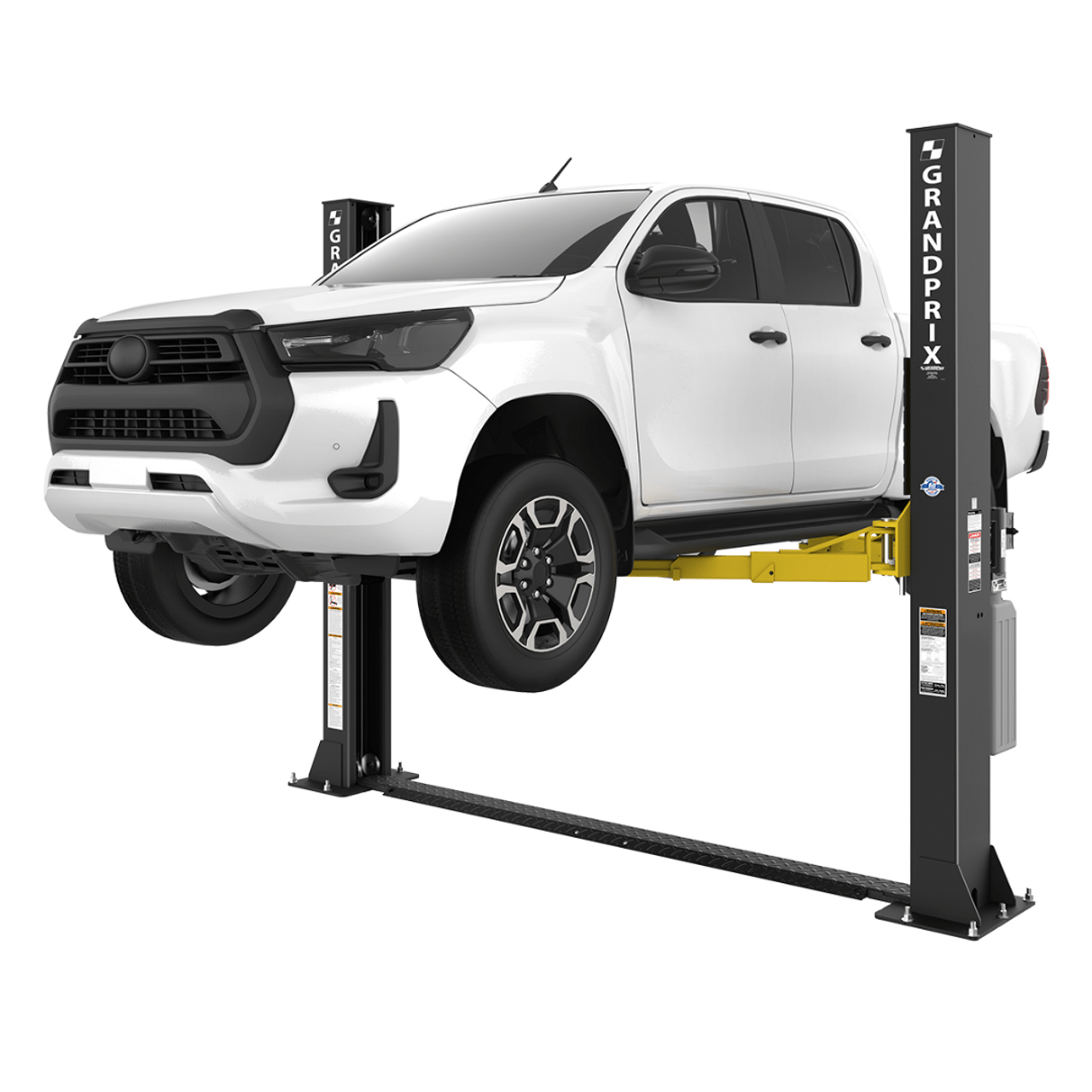

The GrandPrix GP-9LC is a rugged 9,000-lb. capacity two-post lift built for low-ceiling garages and tough shop conditions. Its floorplate design removes overhead obstructions, while symmetric and asymmetric arm configurations provide flexible vehicle access. A proven chain-over system with industrial-grade leaf chain and heavy-duty rollers delivers smooth, reliable lifting backed by serious durability. With automatic safety locks, oversized base plates, and rock-solid construction, the GP-9LC is built to work as hard as you do.
Features

9,000-lb. lifting capacity.
Symmetric and asymmetric arm design for enhanced versatility.

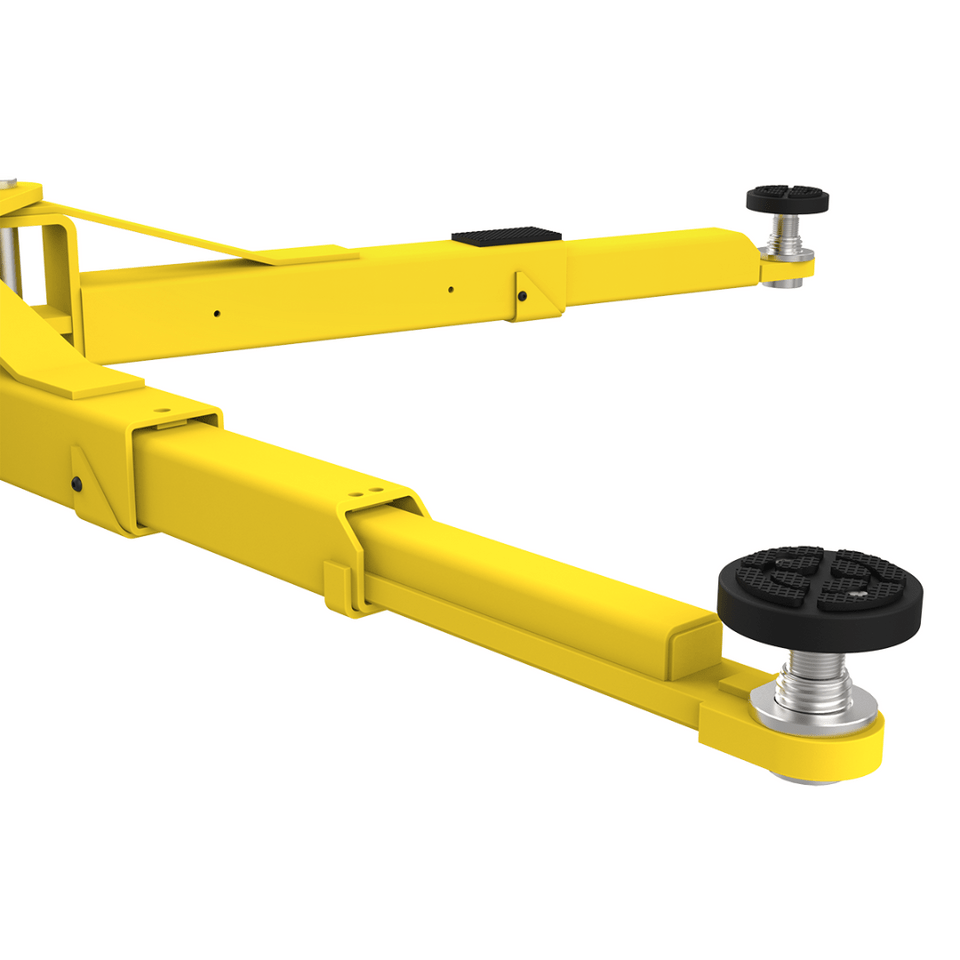

Triple-telescoping front arms & dual-stage extended rear arms.

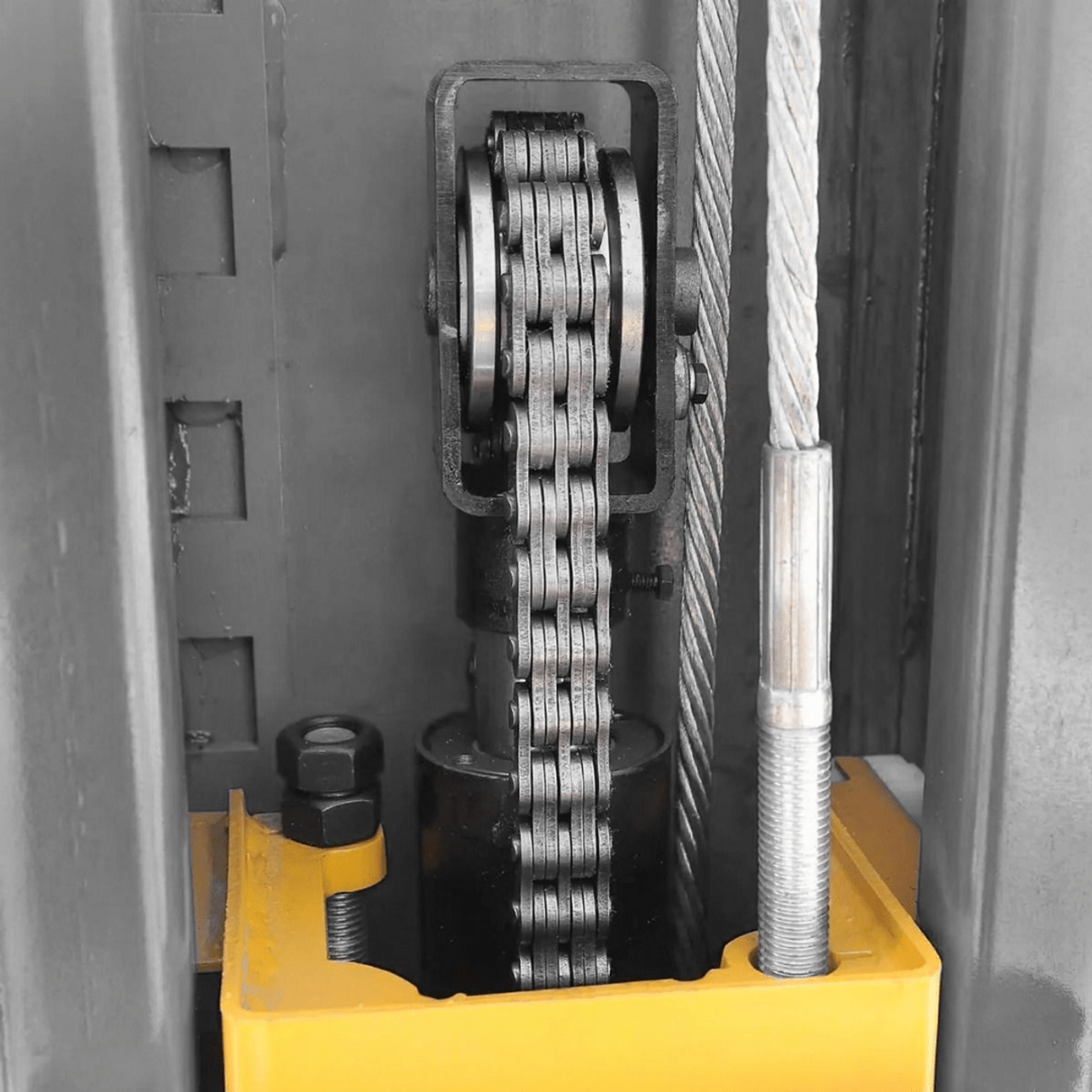

Heavy-duty, high-strength leaf chain engineered for reliable lifting power and durability.
Heavy-duty 6″ x 6″ tubular steel carriage for maximum strength.
Electric-hydraulic power system for effortless operation.

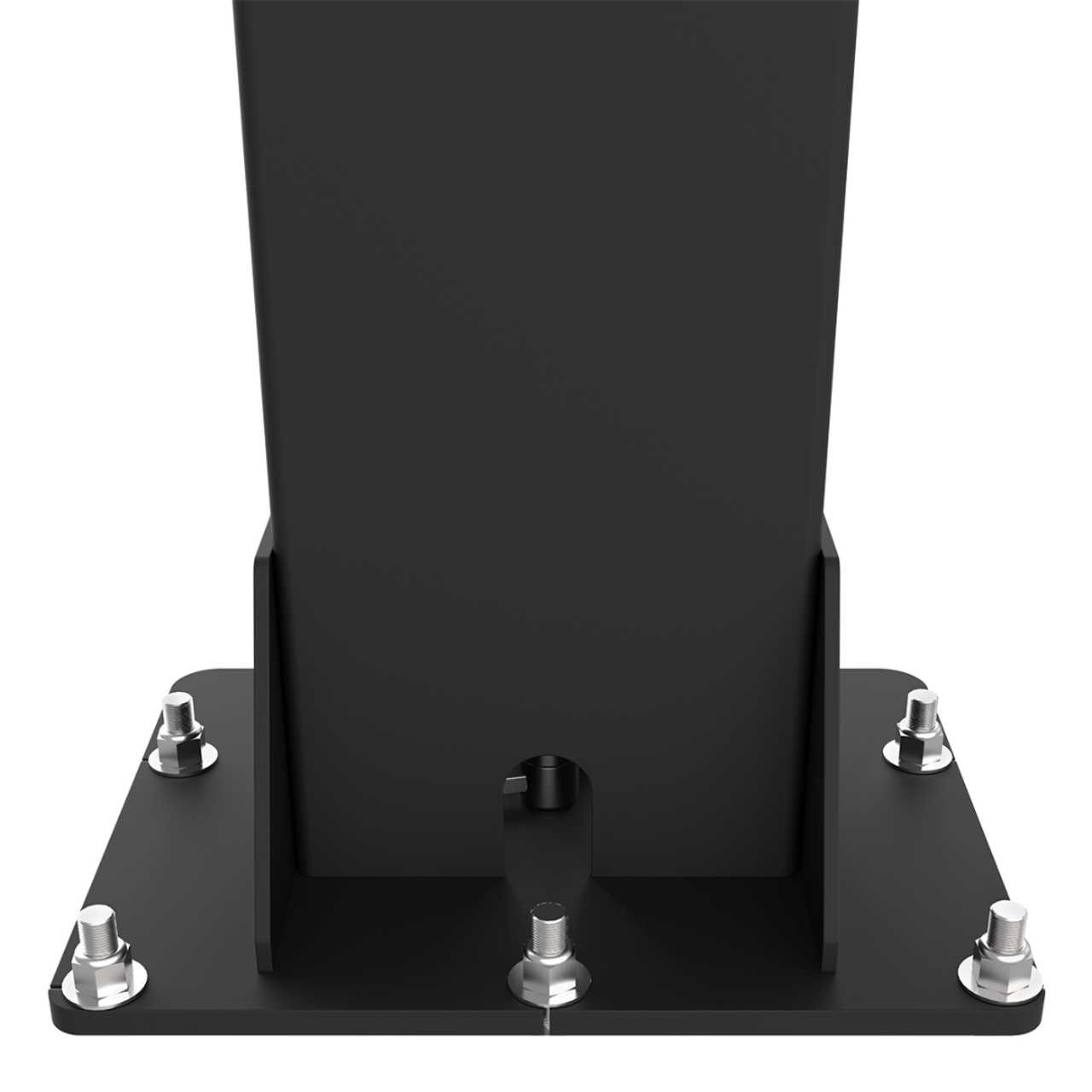

Oversized 20.5″ x 15.5″ base plate for increased stability.
Self-lubricating UHMW polyethylene guide blocks for long-lasting durability.
Safety locks in each column spaced every 3 inches.

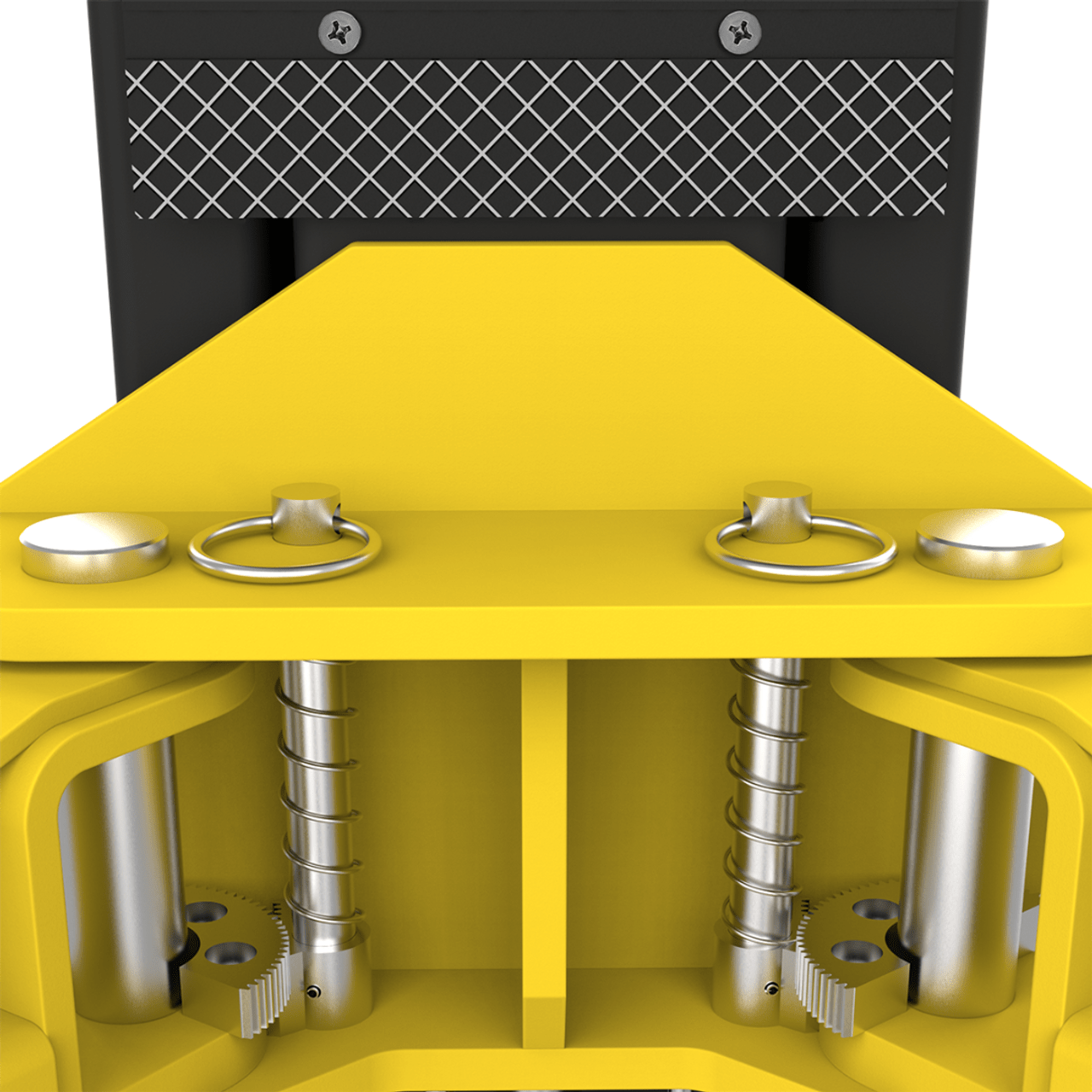

Automatic arm restraints for enhanced safety.
Heavy-duty 1/2″ aircraft-quality equalizer cables.
Oversized cable sheaves to reduce cable fatigue.
Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability.

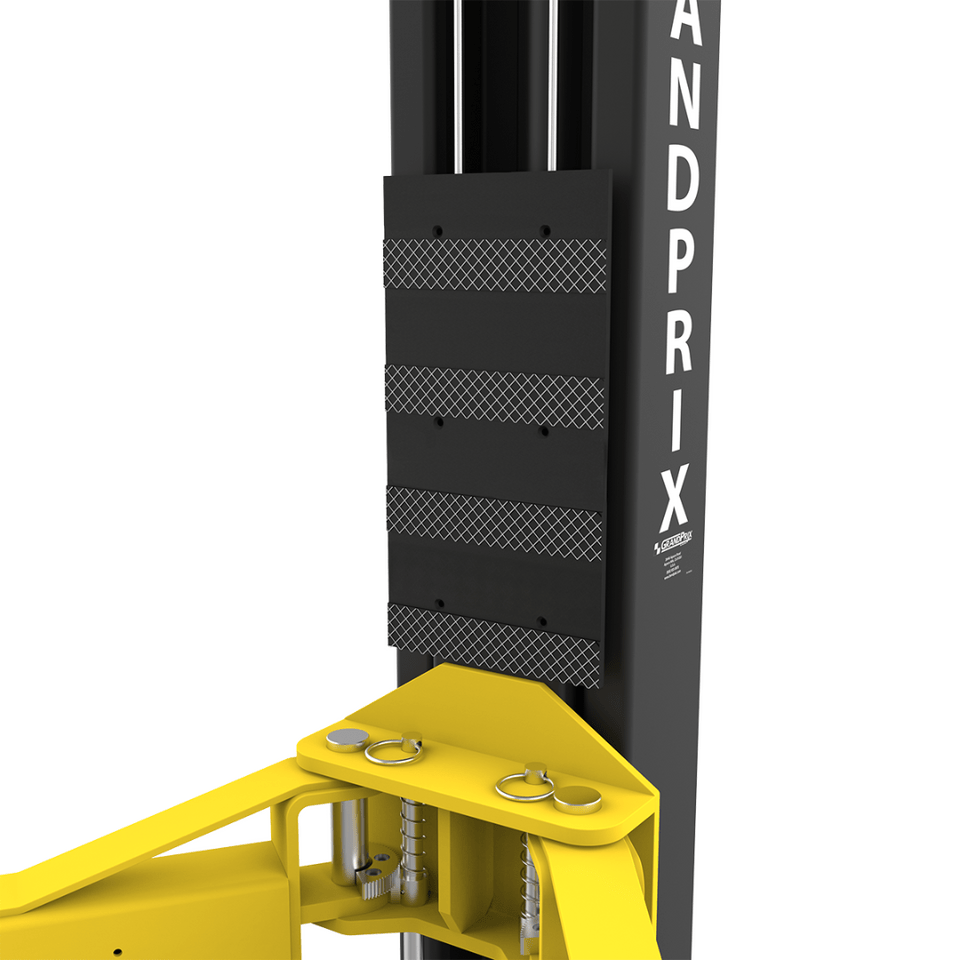

Full size rubber carriage guard reduces door dings.
4-piece 63mm stackable adapter set included.
10-piece concrete wedge anchors included.

Specifications

Lifting Capacity
9,000 lbs. (4,082 kg)

Max. Capacity / Front Axle
4,500 lbs. (2,045 kg)

Max. Capacity / Rear Axle
4,500 lbs. (2,045 kg)

A – Height Overall
109.5″ (2,781 mm)

B – Width Overall (at Baseplate)
137.25″ (3,486 mm)

C – Width Outside of Columns
127.5″ (3,238 mm)

D – Floor To Drive-over Height
1.25″ (30 mm)

E – Width Inside Columns
113.5″ (2,880 mm)

F – Front Arm Reach (Min.)
22.5″ (571 mm)

F – Front Arm Reach (Max.)
43.25″ (1,099 mm)

G – Rear Arm Reach (Min.)
33.5″ (845 mm)

G – Rear Arm Reach (Max.)
53.25″ (1,353 mm)

H – Min. Pad Height
3.9″ (100 mm)

I – Rise
70″ (1,778 mm)

J – Max. Lift Height (Pad + 63mm Adapt.)
76.5″ – 78.5″ (1,943 – 1,994 mm)

K – Drive-Thru Clearance
103″ (2,618 mm)

Screw Pad Adjustment
2″ (51 mm)

Motor
220 VAC / 60Hz / 1 Ph

Time of Full Rise
65 seconds

Max. Load Per Arm
2,250 lbs. (1,023 kg)

Shipping Weight
1,385 lbs. (630 kg)
